Application Scenarios:
- Commercial parking lots and public charging stations
- Electric motorcycle clubs and heavy-duty motorcycle clubs
- Logistics fleet charging points
Please take a moment to fill out the form. We will get back to you ASAP.

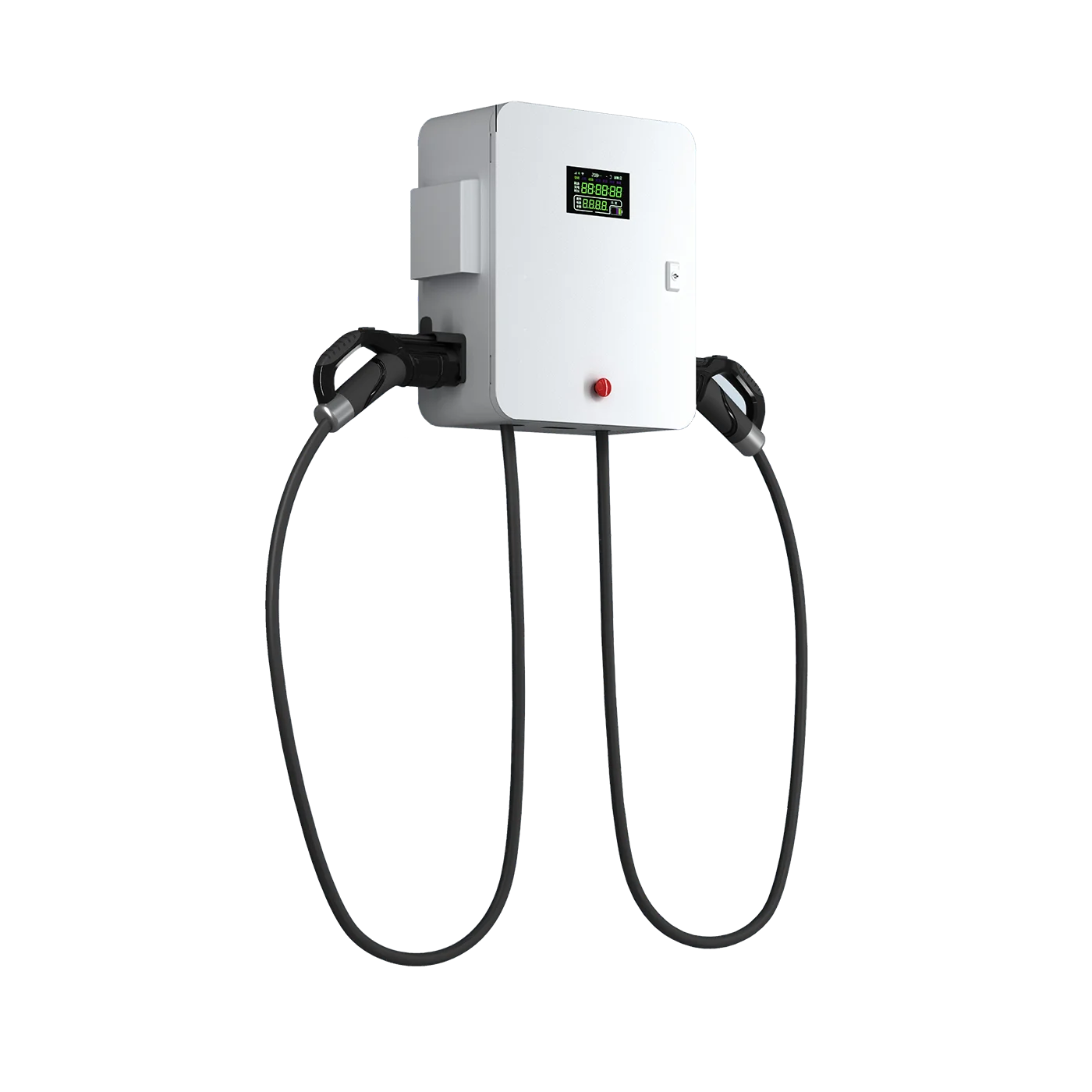

12KW Wall-Mounted / Dual-Gun DC Fast Charging Pile
Get in Touch
Product Features
- Dual-Mode Fast Charging
Single-gun ultra-fast charging / dual-gun simultaneous charging
- Flexible Installation
Wall-mount or floor-standing options, adaptable to various residential and commercial settings
- Smart Management
Supports scheduled charging, remote monitoring, and energy consumption tracking
- Service Mode Ready
Compatible with “one-stop service window” mode, streamlined installation process
Parameters
| Parameter | Specification |
| Input Voltage | AC160~270V |
| Input Current | ≤32A (Max) |
| Applicable Battery Models | 48V/60V/72V，27-100AH lithium batteries |
| Charging Voltage | DC36~84V |
| Single-Gun Charging Current | 60A (Max) |
| Single-Gun Charging Power | 5.1KW (Max) |
| Charging Cable Hot-Plug Lifespan | 10,000 cycles |
| Charging Port | DC 80A（GB/T20234.3） |
| Single-Gun Cable Length | 5M（customizable） |
| Device Dimensions | L500×W239×H600mm |
| Standard Configuration | 7-inch display, LED indicator lights |
