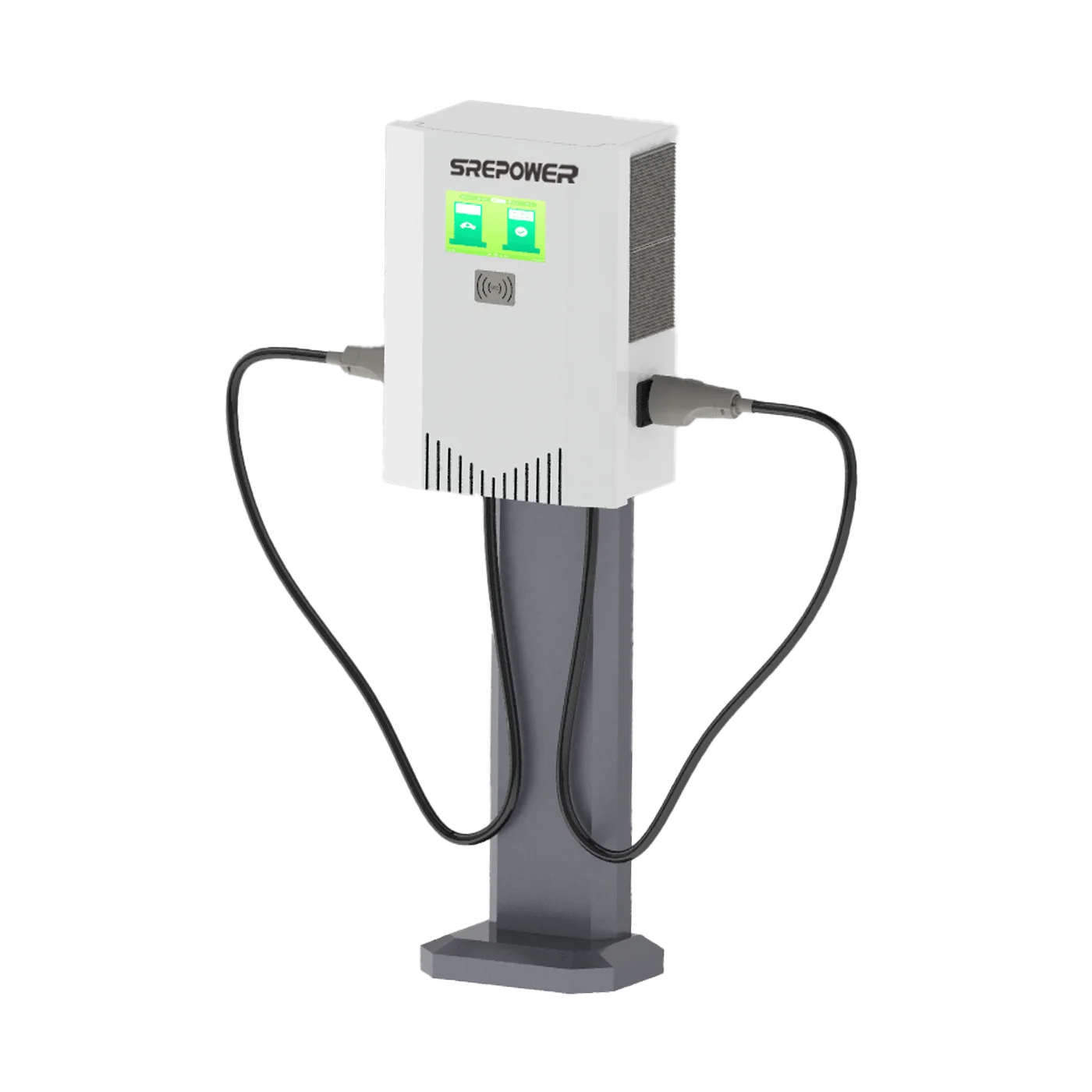

7KW Wall-Mounted / Pedestal Charging Pile

Product Features

Home & Commercial Versatility Floor-standing or wall-mount installation options
Dual-Mode Charging Supports single-gun 70A / dual-gun 35A charging modes
Smart Scheduled Charging Compatible with peak-valley electricity pricing policies
Full Connectivity Suite 7-inch touchscreen with NFC, 4G, and WiFi
Multi-Standard Compatibility Compatible with GB, European, and American charging interfaces

Parameter	Specification
Input Voltage	AC220V
Input Current	≤50A (Max)
Applicable Battery Models	60V/72V/96V，27-100AH lithium batteries
Charging Voltage	DC45~120V
Charging Current	Single gun 70A / dual guns 35A (Max)
Charging Cable Hot-Plug Lifespan	10,000 cycles
Charging Port	DC 60A
Single Gun Cable Length	5M (customizable)
Dimensions	L555×W305×H650mm (wall-mount) L555×W305×H1660mm (floor-standing)
Standard Configuration	7-inch display, NFC, 4G, WiFi
